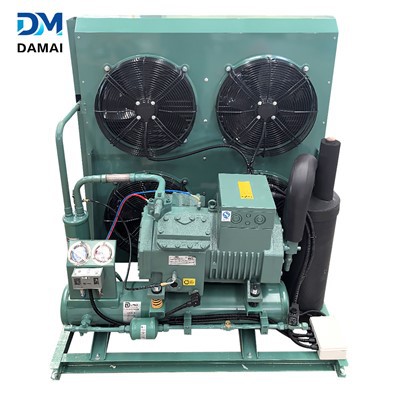

Cooling Unit: Tsim los rau qhov chaw tsis muaj kev txwv xws li cov chaw txias txias me me, chav ua noj hauv khw yooj yim, thiab chav kuaj, chav tsev no yog phab ntsa mounted, tsis muaj qhov chaw hauv pem teb. Cov compressor, condenser, thiab piping yog tag nrho preinstalled nyob rau hauv lub integrated chassis; nyob rau ntawm qhov chaw installation tsuas yog yuav tsum tau phab ntsa mounting thiab tooj liab yeeb nkab kev twb kev txuas, ho shortening lub sij hawm installation. Siv lub suab nrov qis compressor thiab optimized airflow tsim, kev khiav hauj lwm suab nrov qis dua 52 decibels, txo kev cuam tshuam rau cov neeg nyob ze thiab cov neeg siv khoom. Lub chassis yog ua los ntawm galvanized steel nrog sab nraum zoov hmoov txheej, muab cov nag thiab xeb tiv thaiv, haum rau sab nraum zoov phab ntsa mounting. Lub condenser nta ib tug ntom ntom finned tsim rau siab kub dissipation efficiency, yoog mus rau siab -kub ib puag ncig. Cov khoom siv txheem muaj xws li cov khoom siv ua kua, lub tshuab ziab khaub ncaws, thiab kev tiv thaiv kev kub siab, ua kom ruaj khov thiab txhim khu kev qha. Yog tias koj tab tom nrhiav rau qhov chaw txuag, tshuab chav dawb, tsis muaj suab nrov condensing chav tsev rau koj chav txias txias me me, chav tsev monoblock yog cov lus teb.
Customized Services
| Daim ntawv thov piv txwv | Chav ntsuas kub |
| Txiv hmab txiv ntoo & Zaub qhov kub thiab txias | 10 mus rau 20 degree |
| Txiv Hmab Txiv Ntoo & Zaub Freshness | 0℃rau 15 degree |
| Frozen nqaij cia | -5℃rau -18 degree |
Lub npe Convention
DM(1)D(2)-V(3)-20.2(4)U(5)
(1) DM: IB
(2) D: Tsawg kub
G: Kub kub
(3) H: H hom
V: V Type
U: U Type
L: L Hom
(4) 20.2: Hwj chim
(5) S: Sab Tawm
U: Tshaj Tawm
Technical Parameter
- Nruab nrab thiab Tsis Kub Kub Cua -Coled Condensing Unit
| Qauv Ntawm Chav | DMB-2D-2N | DMB-3D-3N | DMB-4D-4N | DMB-5D-5N | DMB-6D-6N | ||
| Qhov ntsuas kub (degree) | +0℃~-25 degree | ||||||
| Cov tub yees | R404A | ||||||
| Fais fab mov | 380V / 50HZ | ||||||
| Condenser | Ntau tus kiv cua | 1 | 1 | 1 | 2 | 2 | |
|
Cua ntim (m³/h) |
1x3200 | 1x3200 | 1x3200 | 2x3200 | 2x3200 | ||
|
Hwj chim Ntawm Ntxuam (W) |
1x60 | 1x60 | 1x60 | 2x60 | 2x60 | ||
|
Compressor Lub tub yees Capacity |
Evaporation te+5 degree |
Lub tub yees Capacity |
5880 | 7910 | 8220 | 12250 | 13400 |
|
Hluav taws xob (W) |
1920 | 3020 | 2630 | 5440 | 6530 | ||
|
Evaporation te-5 degree |
Lub tub yees Capacity (W) |
3750 | 4930 | 5970 | 8230 | 10100 | |
|
Hluav taws xob (W) |
1990 | 3180 | 2380 | 5400 | 5920 | ||
|
Evaporation te-12 degree |
Lub tub yees Capacity (W) |
2920 | 3960 | 4600 | 6600 | 8060 | |
|
Hluav taws xob (W) |
1950 | 2980 | 2250 | 5040 | 5570 | ||
| Interface |
Liquid Interface (mm) |
3/8" | 3/8" | 1/2" | 1/2" | 1/2" | |
|
Suction Pipe Interface (mm) |
5/8" | 5/8" | 3/4" | 3/4" | 3/4" | ||
| Zuag qhia tag nrho Dimensions |
Ntev L (mm) |
950 | 950 | 950 | 950 | 950 | |
|
Dav B (mm) |
375 | 375 | 375 | 375 | 375 | ||
|
Qhov siab H (mm) |
853 | 853 | 853 | 1240 | 1240 | ||
| Installation Dimensions |
Ntev D (mm) |
515 | 515 | 515 | 515 | 515 | |
|
Dav E (mm) |
405 | 405 | 405 | 405 | 405 | ||
- Nruab nrab thiab Kub Kub Huab Cua -Coled Condensing Unit
| Qauv Ntawm Chav | DMB-2G-2N | DMB-3G-3N | DMB-4G-4N | DMB-5G-5N | DMB-6G-6N | ||
| Qhov ntsuas kub (degree) | +10 ~-15 degree | ||||||
| Cov tub yees | R22 | ||||||
| Fais fab mov | 380V / 50HZ | ||||||
| Condenser | Quantity Ntawm Ntxuam | 1 | 1 | 1 | 2 | 2 | |
|
Cua Volume (m³/h) |
1x3200 | 1x3200 | 1x3200 | 2x3200 | 2x3200 | ||
|
Hwj chim Ntawm Ntxuam (W) |
lx 60 | lx 60 | 1x60 | 2x60 | 2x60 | ||
|
Compressor Lub tub yees Capacity |
Evaporation te+5 degree |
Lub tub yees Capacity (W) |
5850 | 8220 | 8220 | 13050 | 16200 |
|
Hluav taws xob (W) |
1760 | 2630 | 2630 | 4260 | 5080 | ||
|
Evaporation te-5 degree |
Lub tub yees Capacity (W) |
4200 | 5970 | 5970 | 9270 | 11800 | |
|
Hluav taws xob (W) |
1620 | 2380 | 2380 | 3780 | 4680 | ||
|
Evaporation te-12 degree |
Lub tub yees Capacity (W) |
3210 | 4600 | 4600 | 7160 | 9370 | |
|
Hluav taws xob (W) |
1560 | 2250 | 2250 | 3400 | 4230 | ||
| Interface |
Liquid Interface (mm) |
3/8" | 3/8" | 1/2" | 1/2" | 1/2" | |
|
Suction Pipe Interface (mm) |
5/8" | 5/8" | 3/4" | 3/4" | 3/4" | ||
| Zuag qhia tag nrho Dimensions |
Ntev L (mm) |
950 | 950 | 950 | 950 | 950 | |
|
Dav B (mm) |
375 | 375 | 375 | 375 | 375 | ||
|
Qhov siab H (mm) |
853 | 853 | 853 | 1240 | 1240 | ||
| Installation Dimensions |
Ntev D (mm) |
515 | 515 | 515 | 515 | 515 | |
|
Dav E (mm) |
405 | 405 | 405 | 405 | 405 | ||
Ntim
